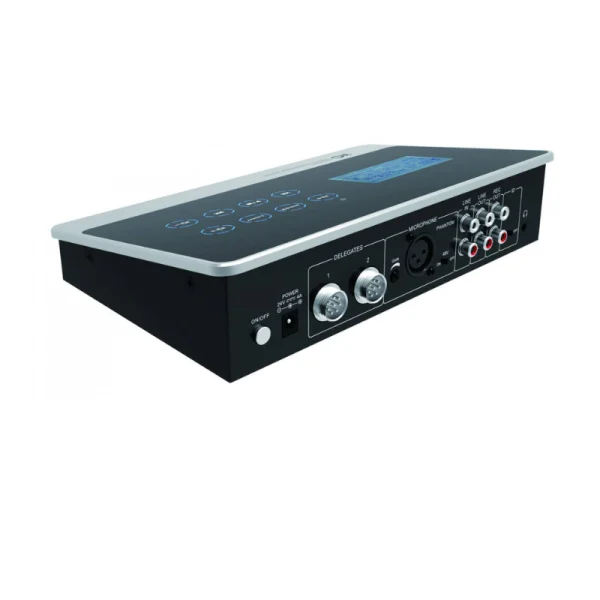

ITC TS-0605M Digital Conference System Extension Controller

Model

TS-0605M

Microphone Quantity

≤30

Frequency Response

30Hz~20KHz

SNR

>75 dB(A)

Dynamic Range

>80 dB

Crosstalk

>80 dB

THD

<0.05%

Power Supply

24V DC

Audio Input

LINE IN : 350mV Balance

Audio Output

LINE OUT 1: 1V Balance

Output Load

>1KΩ

Static Consumption

10W

Output Consumption

70W

Connector

8 PIN aviation plug

Standards

IEC60914

Working Temperature

-10℃~+60℃

Working Humidity

20%~80% relative humidity, no condensation

Color

Black

Dimension(L×W×H)

210x132x50 mm

Weight

1.65kg
