T-77500B
Standard 19 inch rack design
Black alumina panel
Solid handle
Professional mechanical assembly process
The appearance is very high-end
Industrial-grade LCD display in 3.4-inch

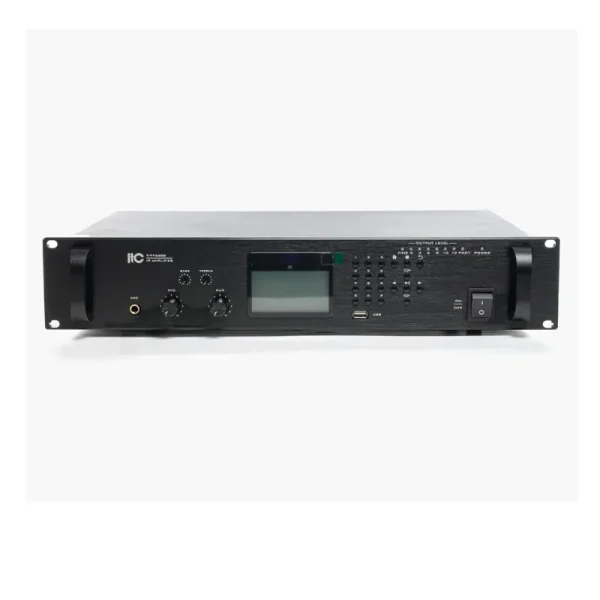

ITC T-77500B IP Amplifier
| Model | T-7760B | T-7120B | T-77240B | T-77350B | T-77500B | T-77650B | ||||||
| Network Interface | standard RJ45 input | |||||||||||
| Transmission Rate | 100Mbps | |||||||||||
| Protocol Support | TCP/IP,UDP | |||||||||||
| Audio Format | MP3 | |||||||||||
| Audio Mode | 16 bits CD sound quality | |||||||||||
| Sampling Rate | 8KHz~48KHz | |||||||||||
| EMC Input Sensitivity | 775mV (Unbalance) | |||||||||||
| AUX Input Sensitivity | 350mV (Unbalance) | |||||||||||
| MIC Input Sensitivity | 5mV (Unbalance) | |||||||||||
| AUX Output Amplitude | 1000mV 2 lotus flower output interface | |||||||||||
| AUX Output Impedance | 470Ω | |||||||||||
| Treble Adjustment Range | ±10dB | |||||||||||
| Bass Adjustment Range | ±10dB | |||||||||||
| USB Interface | Maximum support 16G memory USB access | |||||||||||
| Rated Power | 60W | 120W | 240W | 350W | 500W | 650W | ||||||
| Power Consumption | 90W | 180W | 370W | 540W | 750W | 950W | ||||||
| Standby Power Consumption | <10W | |||||||||||
| Frequency Response | 80Hz~16KHz +1/-3dB | |||||||||||
| Harmonic Distortion | ≤1% | |||||||||||
| SNR | >65dB | |||||||||||
| Output Method | 100V constant voltage output | |||||||||||
| Short Circuit Input | Dry contact input | |||||||||||
| Circuit Protection | DC output, overload, over temperature, short circuit protection | |||||||||||
| Working Temperature | 5℃~40℃ | |||||||||||
| Working Environment Humidity | 20%~80% relative humidity, no condensation | |||||||||||
| Power Input | ~220V 50Hz | |||||||||||
| Size | 484 x 359 x 132mm | |||||||||||
| Weight | 6.8kg | 6.9kg | ||||||||||
