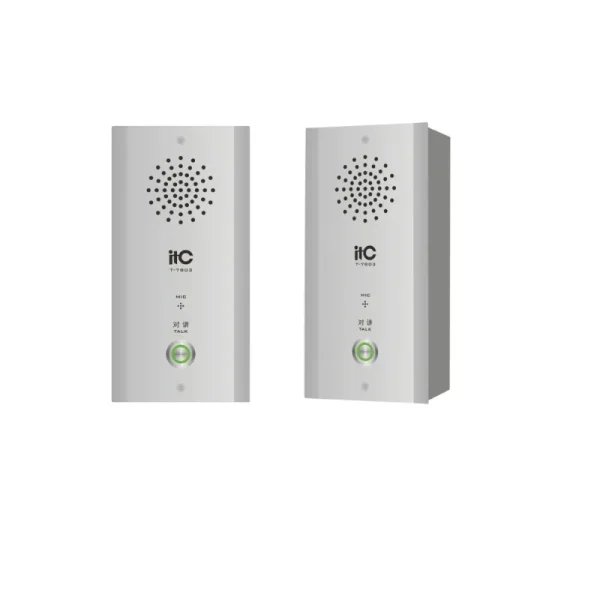

ITC T-7803E Intercom Terminal
* Simple appearance, beautiful lines, high-grade brushed aluminum panel, durable, can be flush
mounted or surface mounted.
* Luna cloud-based server, has a very high safety and excellent stability, support 7×24 hours a day.
* Double buttons help and alarm intercom function, a key to achieve call center, duty and other regional
microphone full-duplex intercom.
* Custom key function, you can set a key for help, a key for intercom, a key for meeting, a key for file
playing variety of applications.
* With the panel removing, the terminal on line, terminal linkage trigger off other programs, you can set
the synchronization Email messages sent, alarm terminal linkage other regions and other triggers.
* With sound pressure alarm function, when the detected ambient volume continuously exceeds the
preset sound pressure range, according to a preset program automatically trigger an alarm specified
terminal, trigger the software interface to pop-up prompts, synchronizing Email send messages and so
on.
Model: T-7803E
Network Interface: Standard RJ45 input
Transmission Rate: 100Mbps
Support Protocol: TCP/IP,UDP,IGMP (Multicast), IETF SIP
Audio Format: Mp3, WMA, WAV
Audio Mode: 16 bit CD quality
Sampling Rate: 8K~48KHz
AUX Input: 1 group
AUX Sensitivity: 350mV
THD: ≤1%
SNR: >65dB
Short-circuit Input: 0V/3.3V, Support Stem node input
Short- circuit Output: Maximum 1A/30VDC dry contact input
Working Temperature: 5℃~40℃
Working Moisture: 20%~80%, Relative humidity, without condensation
Power Supply: ~190-240V 50/60Hz(Power adapter); DC24V/2A
Size: 86×172×58mm
Weight: 0.5Kg
