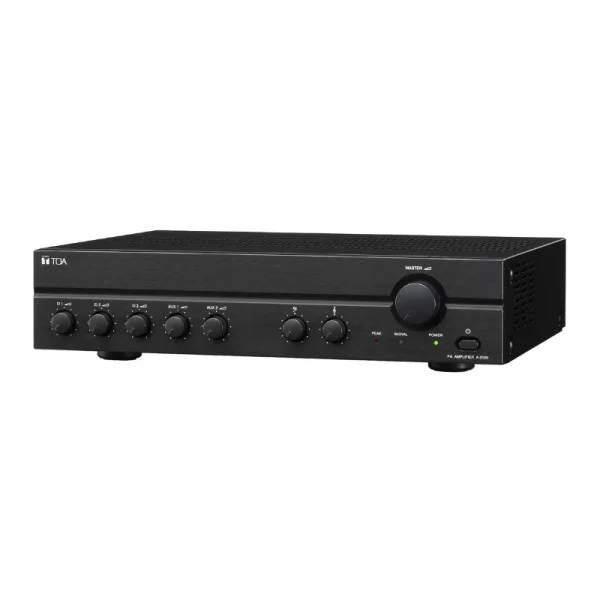

Toa A-2060 Mixer Amplifier
TOA A-2060 Power Amplifier
• 60 W rated output
• User-friendly front panel allows easy operation
• Excellent frequency response
• 3 electronically balanced microphone inputs, 2 AUX inputs, and recording output
• Phantom power is provided to MIC 1, for supplying power to a condenser microphone
• Wide tone-control adjustment range of ±10dB for both bass and treble
• 100 V / 70 V line or 4 Ω speaker outputs
• Recording output
• 3 MIC inputs, 2 AUX inputs for tuner, cassette player, or other BGM sources
• 2-unit size
Toa A-2060 Mixer Amplifier
| Power Source | 220 – 240 V AC |
|---|---|
| Rated Output | 60 W |
| Power Consumption | 72 W (EN60065) |
| Frequency Response | 50 Hz – 20 kHz Hz (±3 dB) |
| Distortion | 1% or less at 1 kHz |
| Input | MIC 1 – 3: -60 dB* AUX 1 Mute: Contact screw terminal (for MIC 1) |
| Output | Speaker out: Balanced (floating) distance between barriers: 8.3 mm (0.33″) High impedance: 170 Ω (100 V) Low impedance: 4 Ω (15.5 V) Rec out: 0 dB* |
| Phantom Power | DC +21 V (MIC 1) |
| S/N Ratio | 60 dB or more |
| Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Muting | MIC 1 overrides other input signals with 0 – 30 dB attenuation by mute terminal contact. |
| Finish | Panel: ABS resin Case: Steel plate |
| Dimensions | 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54 × 3.97″ × 11.04) |
| Weight | 7 kg (15.43 lb) |
