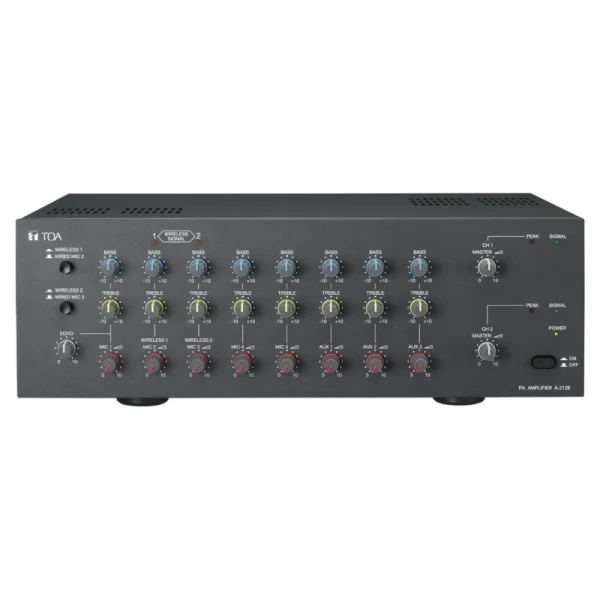

TOA A-2128 Mixer Amplifier
TOA A-2128 Mixer Amplifier
The TOA A-2128 Mixer Power Amplifier comes with option of 1-channel or 2-channel, this PA amplifier meet the audio requirements for various sites. It has the possibility to combine various systems, giving you the ideal solution especially for speech and music, in houses of worship, multi-purpose halls and schools
TOA A-2128 Mixer Amplifier
| Power Supply | AC: 220 V, 50/60 Hz | |
|---|---|---|
| DC: 24 V | ||
| Power Output | Rated 120W RMS x 2 | |
| Power Consumption | AC: 520 W (rated output) | |
| AC: 286 W (operation at EN60065) | ||
| DC: 20 A (rated output) | ||
| Frequency Response | 50 Hz – 20,000 Hz (±3 dB) | |
| Distortion | Less than 1% THD at 1 kHz, 1/3 rated output power | |
| Inputs (Sensitivity, Impedance, Connector) | ||
| MIC 1 | Rear | 1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack, Echo |
| MIC 2/Wireless 1 | Rear | 1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack, Wireless Tuner |
| MIC 3/Wireless 2 | Rear | 1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack, Wireless Tuner |
| MIC 4 | Rear | 1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack |
| MIC 5 | Rear | 1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack |
| AUX 1 | Rear | 300mV (-10dB*) Unbalanced 10Ω, 2-RCA Pin Jack |
| AUX 2 | Rear | 300mV (-10dB*) Unbalanced 10Ω, 2-RCA Pin Jack |
| AUX 3 | Rear | 300mV (-10dB*) Unbalanced 10Ω, 2-RCA Pin Jack |
| Speaker Outputs | 100V x 2, 4Ω x 2 | |
| PRE AMP OUT | 1.0V (0dB*) Unbalanced 600Ωx2, RCA Pin Jack | |
| PWR AMP IN | 1.0V (0dB*) Unbalanced 10Ωx2, RCA Pin Jack | |
| REC OUT | 1.0V (0dB*) Unbalanced 600Ω, 2-RCA Pin Jack | |
| Phantom Power | ON or OFF for MIC 1 with switch setting (+21 V DC) | |
| External Antenna | DC +10V for Booster | |
| Noise Level (S/N) | More than 80 dB at All Volume control full CCW | |
| More than 50 dB at All Volume control full CW | ||
| Output Regulation | Less than 3 dB no load to full load | |
| Controls | Front | 5 Microphone Gain Controls |
| Front | 3 Aux Gain Controls | |
| Front | 8 Bass Tone Controls | |
| Front | 8 Treble Tone Controls | |
| Front | 1 Echo Level Control | |
| Front | 2 Master Controls | |
| Front | 1 Power On/Off Switch | |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz | |
| Indicators | 2 LED Wireless signal, 2 LED Signal, 2 LED Peak, 1 LED Power On | |
| Ambient Temperature | 0 ℃ to +40 ℃ | |
| Finish | Front Panel: Aluminum Gray Case: Steel plate, Gray |
|
| Dimensions | 420 (W) × 144 (H) × 361 (D) mm | |
| Weight | 19.5 kg | |
