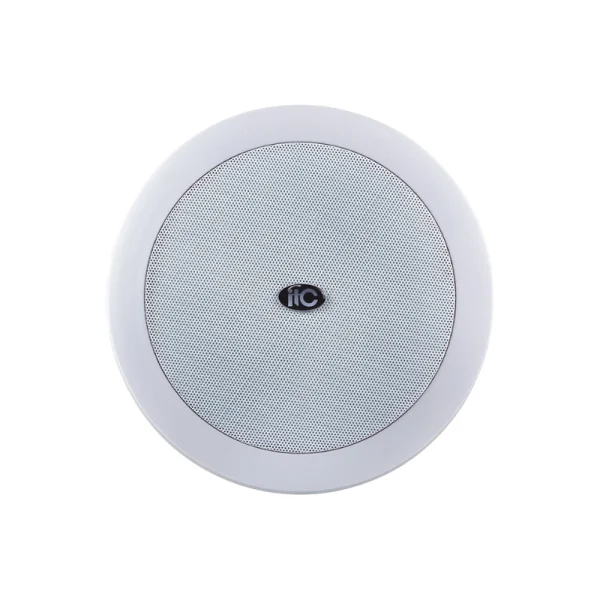

ITC T-208B 8 Inch PA Coaxial Ceiling Speaker System
ITC T-208B Ceiling Speaker
• Built-in 100v/70v transformer
• Excellent sound quality speaker for music & speech
• In-ceiling type loudspeaker
• 8” +1.5” coaxial paper speaker unit
• Power taps 1.87W, 3.75W, 7.5W & 15W @100V
• Metal grille & ABS baffle
• Paint in white color
• Flush mount easy & secure installation
ITC T-208B 8 Inch PA Coaxial Ceiling Speaker System
|
Power taps @100V
|
1.87W, 3.75W, 7.5W, 15W
|
|
Power taps @70V
|
0.93W, 1.87W, 3.75W, 7.5W
|
|
Impedance
|
Black:Com Blue:5.3KΩ Red:2.6KΩ Green:1.3KΩ White:670Ω |
|
SPL(1W/1M)
|
90dB
|
|
Frequency response (-10dB)
|
80-20KHz
|
|
Speaker driver
|
8″ ×1 1.5″ ×1
|
|
Cutout size
|
245mm
|
|
Dimensions
|
280 ×80mm
|
|
Weight
|
1.5Kg
|
