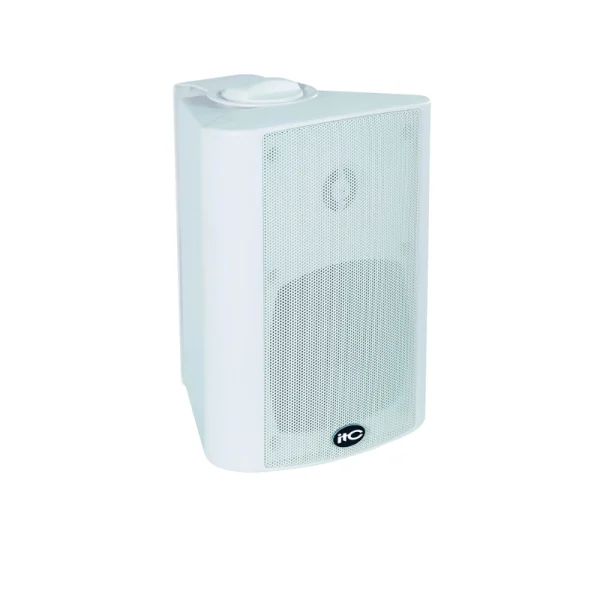

ITC T-775PW Wall Mount Speaker

• Model T-775PW
• Power Taps @100V 3.75W, 7.5W, 15W, 30W
• Power Taps @70V 1.9W, 3.75W, 7.5W, 15W, 30W
• Transformer Impedance 2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω

Categories: ITC Speakers, ITC PA System, Speakers

Description

ITC T-775PW Wall Mount Speaker

Model	T-775PW
Power Taps @100V	3.75W, 7.5W, 15W, 30W
Power Taps @70V	1.9W, 3.75W, 7.5W, 15W, 30W
Transformer Impedance	2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω
Input	70V/100V/8Ω
SPL(1W/1M)	92dB
Max. SPL (Rated W/1M)	107dB
Frequency Response (-10dB)	125-18KHz
Finish	Baffle: ABS, Black/White
Finish	Grille: Steel, Black/White
Speaker Driver	5″ x 1 1.5″ x 1
Dimensions	243 x 185 x186mm
Weight	2.7kg
Mounting	With mounting bracket fixed by screw
