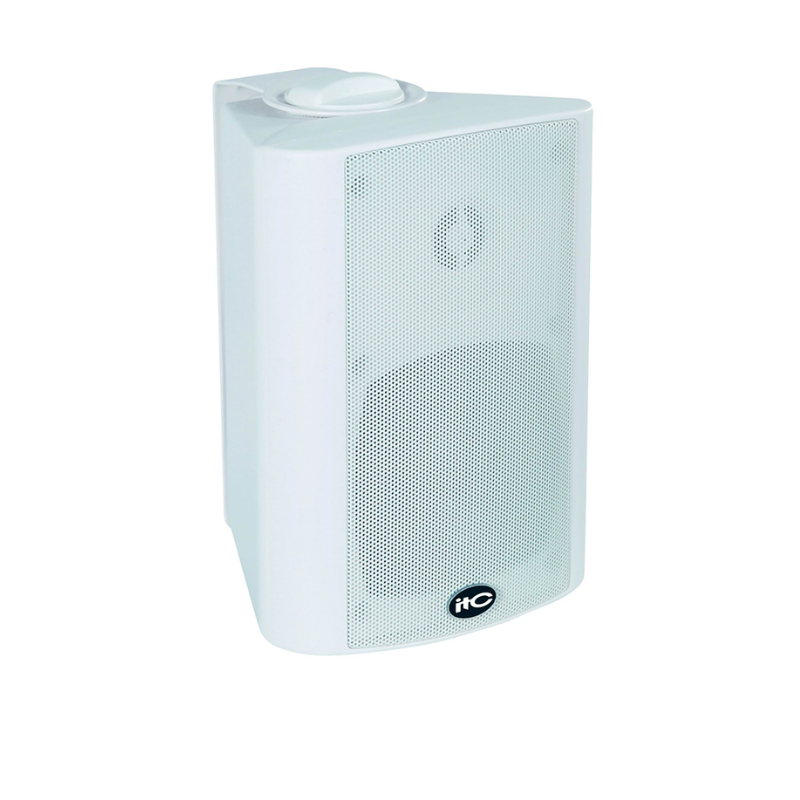

ITC T-776PW Wall Mount Speaker
ITC T-776PW Wall Mount Speaker
• Model T-776PW
• Power Taps @100V 5W, 10W, 20W, 40W
• Power Taps @70V 2.5W, 5W, 10W, 20W, 40W
• Transformer Impedance 2KΩ/1KΩ/500Ω/250Ω/122Ω
ITC T-776PW Wall Mount Speaker
|
Model |
T-776PW |
|
Power Taps @100V |
5W, 10W, 20W, 40W |
|
Power Taps @70V |
2.5W, 5W, 10W, 20W, 40W |
|
Transformer Impedance |
2KΩ/1KΩ/500Ω/250Ω/122Ω |
|
Input |
70V/100V/8Ω |
|
SPL(1W/1M) |
94dB |
|
Max. SPL (Rated W/1M) |
110dB |
|
Frequency Response (-10dB) |
120-18KHz |
|
Finish |
Baffle: ABS, Black/White |
|
|
Grille: Steel, Black/White |
|
Speaker Driver |
6″ x 1 1.5″ x 1 |
|
Dimensions |
298 x 215 x 225mm |
|
Weight |
4.1kg |
|
Mounting |
With mounting bracket fixed by screw |
