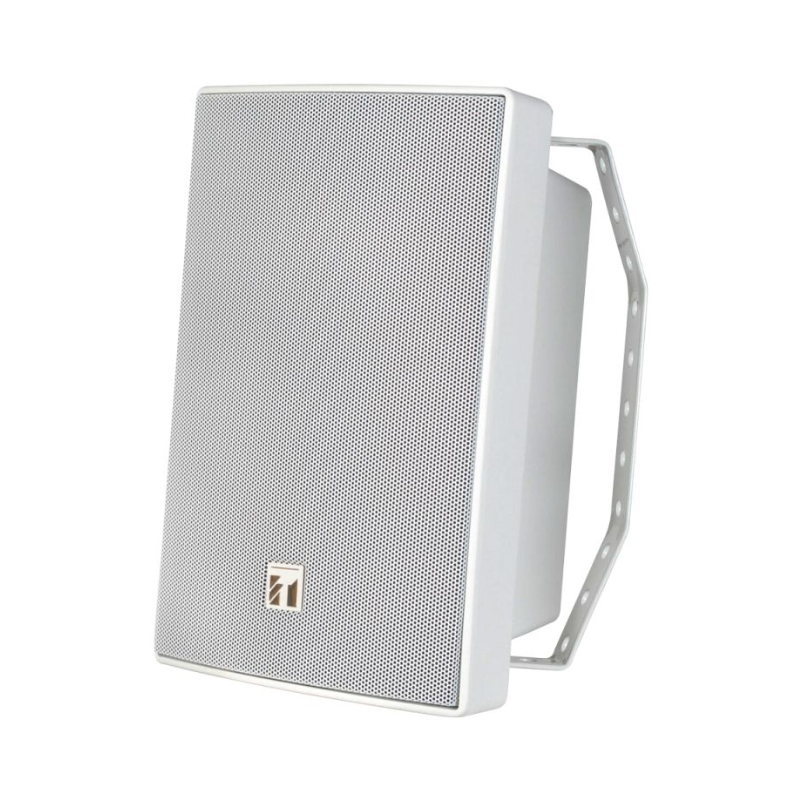

Toa BS-1030W Universal Wall Mount Speaker
TOA BS-1030W Universal Speaker
• 2-way bass reflex speaker
• Cost-effective high power PA box speaker
• Various installation options
• Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
• Splashproof construction in compliance with IPX4
|
Enclosure
|
2-way bass-reflex type
|
|
Rated Input
|
30 W
|
|
Rated Impedance
|
8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) |
|
Frequency response
|
80 Hz – 20 kHz
|
|
Speaker component
|
12 cm cone-type + dome-type
|
|
Option
|
Mounting bracket: SP-420 Applicable bracket: WCB-13W, SP-410 Applicable stand: ST-16A
|
|
Dimensions
|
196 (W) × 290 (H) × 150 (D) mm (unit only)
|
|
Finish
|
Enclosure: ABS resin, white (RAL9010 PURE WHITE), paint Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating Bracket: Surface treated steel plate, white equivalent to RAL9010 PURE WHITE, powder coating |
|
Sound Pressure Level
|
90 dB (1 W, 1 m)
|
|
Speaker Cord
|
2-core cabtyre cord with diameter of 6 mm
|
|
Operating Temperature
|
-10 ℃ to +50 ℃
|
|
Water Protection
|
IPX4 (can be installed vertically or horizontally.*)
|
|
Weight
|
2.5 kg (unit only)
|
|
Accessory
|
Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2
|
