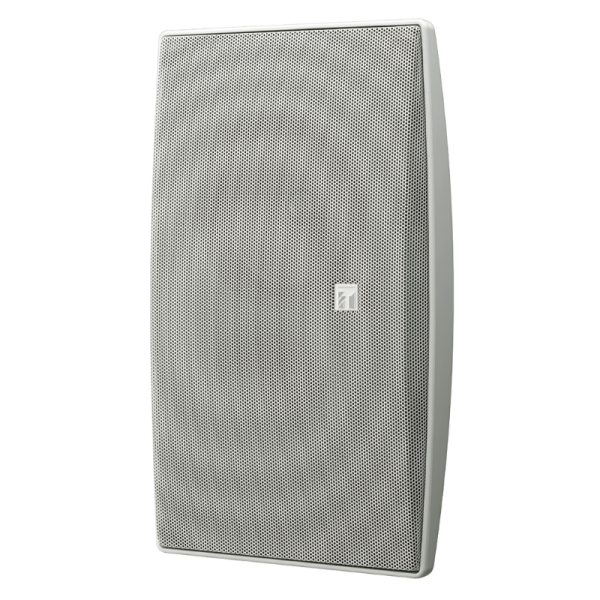

Toa BS-1034 Wall Mount Speaker
TOA BS-1034 Wall Mount Box Speaker
• 2-way speaker
• Easy and quick installation
• Attractive design based on the golden ratio
• Input impedance selector with rotary switch
• Fire resistant according to UL 94-V0
Toa BS-1034 Wall Mount Speaker
|
Rated input
|
10 W
|
|
Rated impedance
|
100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
|
Sensitivity
|
90 dB (1 W, 1 m)
|
|
Frequency response
|
120 Hz – 20 kHz
|
|
Speaker component
|
Low frequency: 12 cm (5″) cone-type, High frequency: Balanced dome-type
|
|
Input Connector
|
M4 screw terminal, distance between barriers: 11 mm (0.43″)
|
|
Dimensions
|
208 (W) × 327 (H) × 79 (D) mm (8.19″ × 12.87″ × 3.11″)
|
|
Finish
|
Enclosure: HIPS resin (fire resistant grade UL94 V-0 or its equivalent), off-white (RAL 9010 or equivalent color) Net: Steel plate, off-white (RAL 9010 or equivalent color), paint |
|
Weight
|
1.4 kg (3.09 lb)
|
|
Accessory
|
Speaker receptacle …1, Wall mounting screw …2
|
