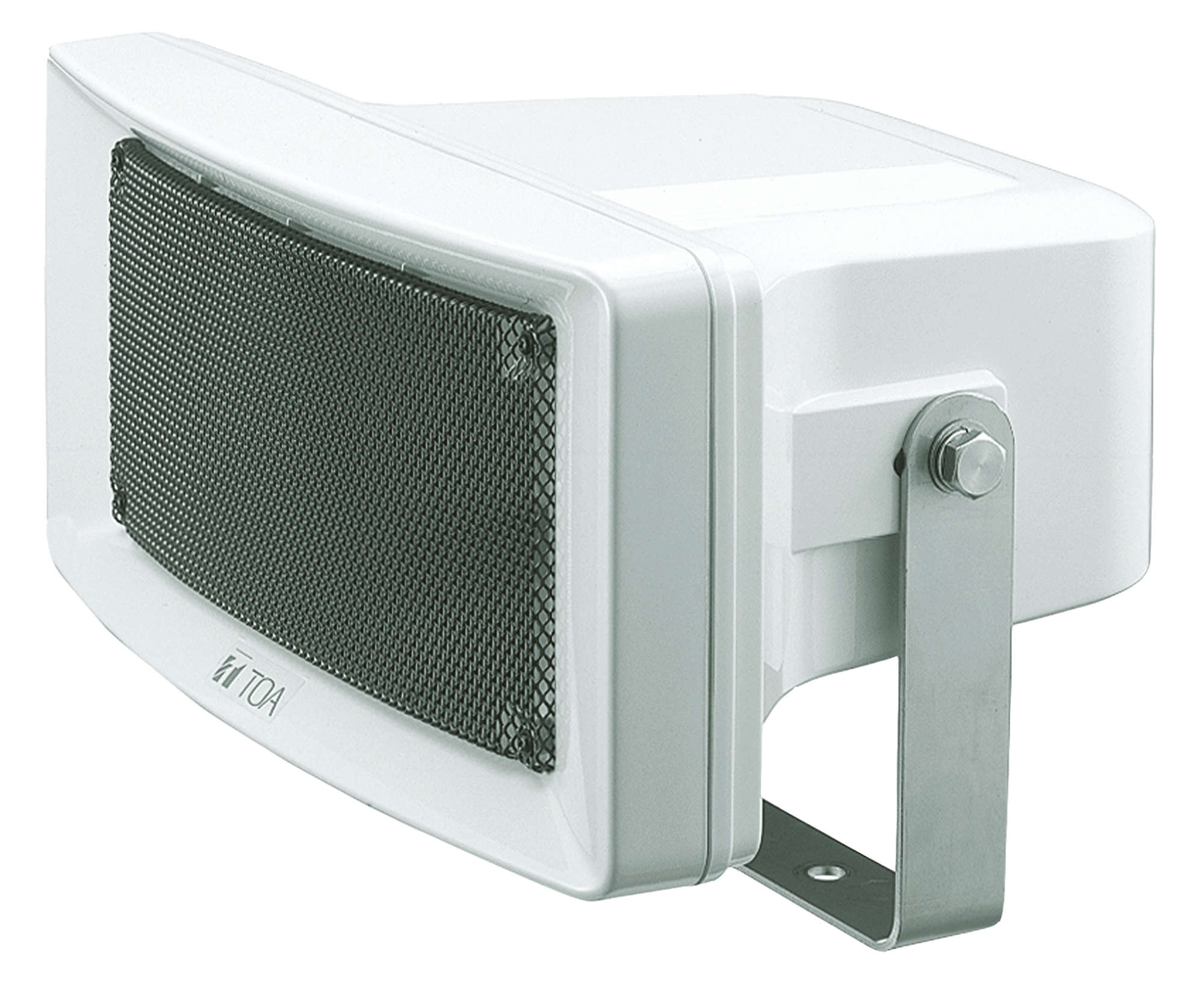

Toa CS-304 Wide Range Weatherproof Cone Speaker
Toa CS-304 Wide Range Weatherproof Cone Speaker
• Rectangular wide-range speaker for voice paging, background music and tone signaling distribution
• Constant directivity horn improves directivity characteristics and ensures uniform and clear sound dispersion
• Wide temperature range: -20 to +55 °C
• Waterproof plastic enclosures and stainless steel bracket for all-weather durability, IP65
Toa CS-304 Wide Range Weatherproof Cone Speaker
|
Rated input
|
30 W
|
|
Rated impedance
|
100 V line: 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
|
|
Sensitivity
|
98 dB (1 W, 1 m)
|
|
Frequency response
|
120 – 15,000 Hz
|
|
Speaker component
|
12 cm cone-type
|
|
Horizontal Directivity
|
Constant directivity horn 90゜ (±45゜ horizontal from front axis) 93 dB or more (1 W, 1 m), 3 kHz at ±45゜
|
|
Speaker Cord
|
2-core cabtyre cord with diameter of 6 mm
|
|
Operating Temperature
|
-20℃ to +55℃
|
|
Dust/Water Protection
|
IP65
|
|
Finish
|
Horn, cover: ABS resin, off-white, paint Bracket: Stainless steel Net: Aluminum, gray, paint Screw: Stainless steel
|
|
Dimensions
|
366 (W) × 230 (H) × 272 (D) mm
|
|
Weight
|
3.1 kg
|
